Headplay HD



vova@rangevideo.com

A mind blowing 72 degree field of view will immerse you in FPV flight.

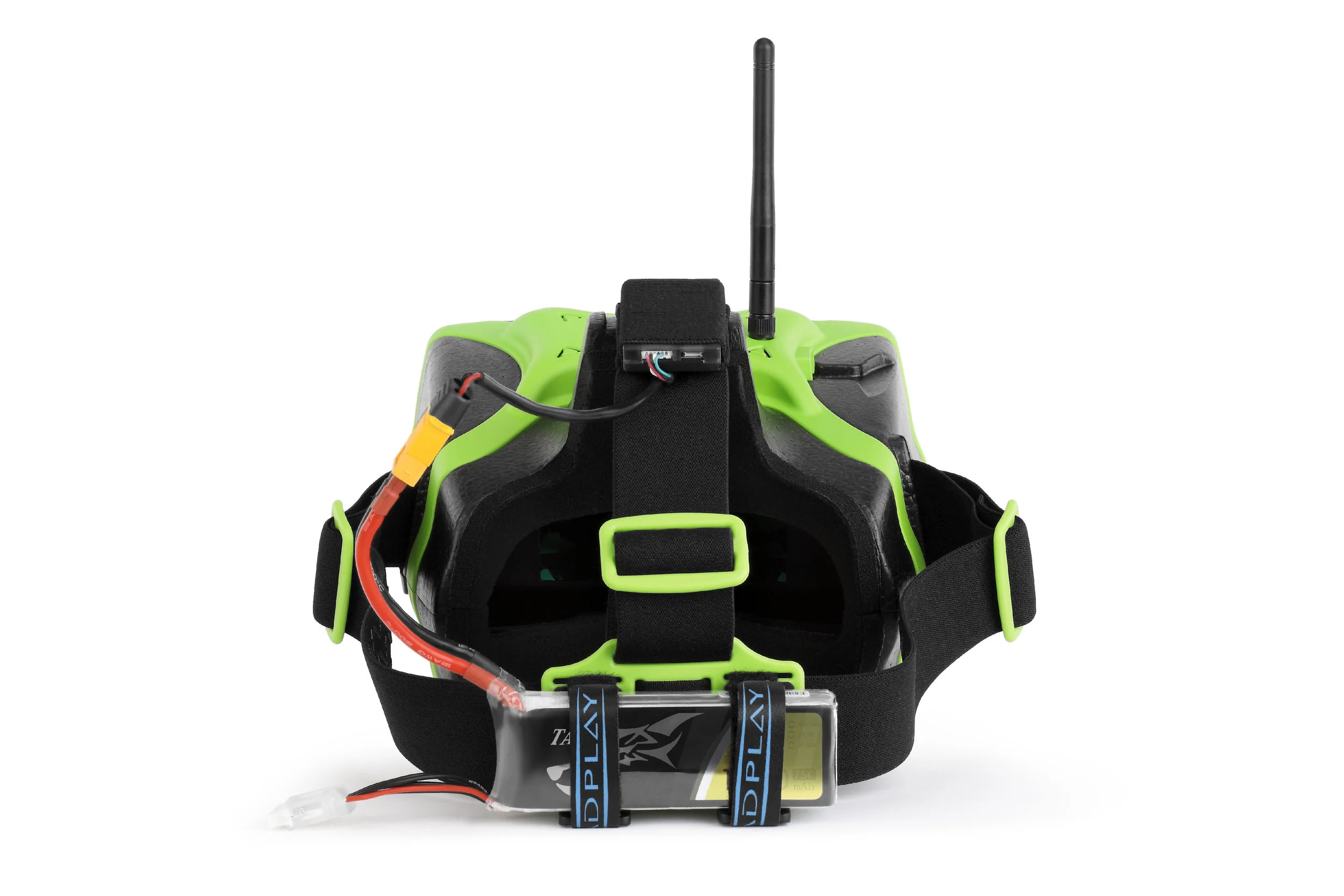

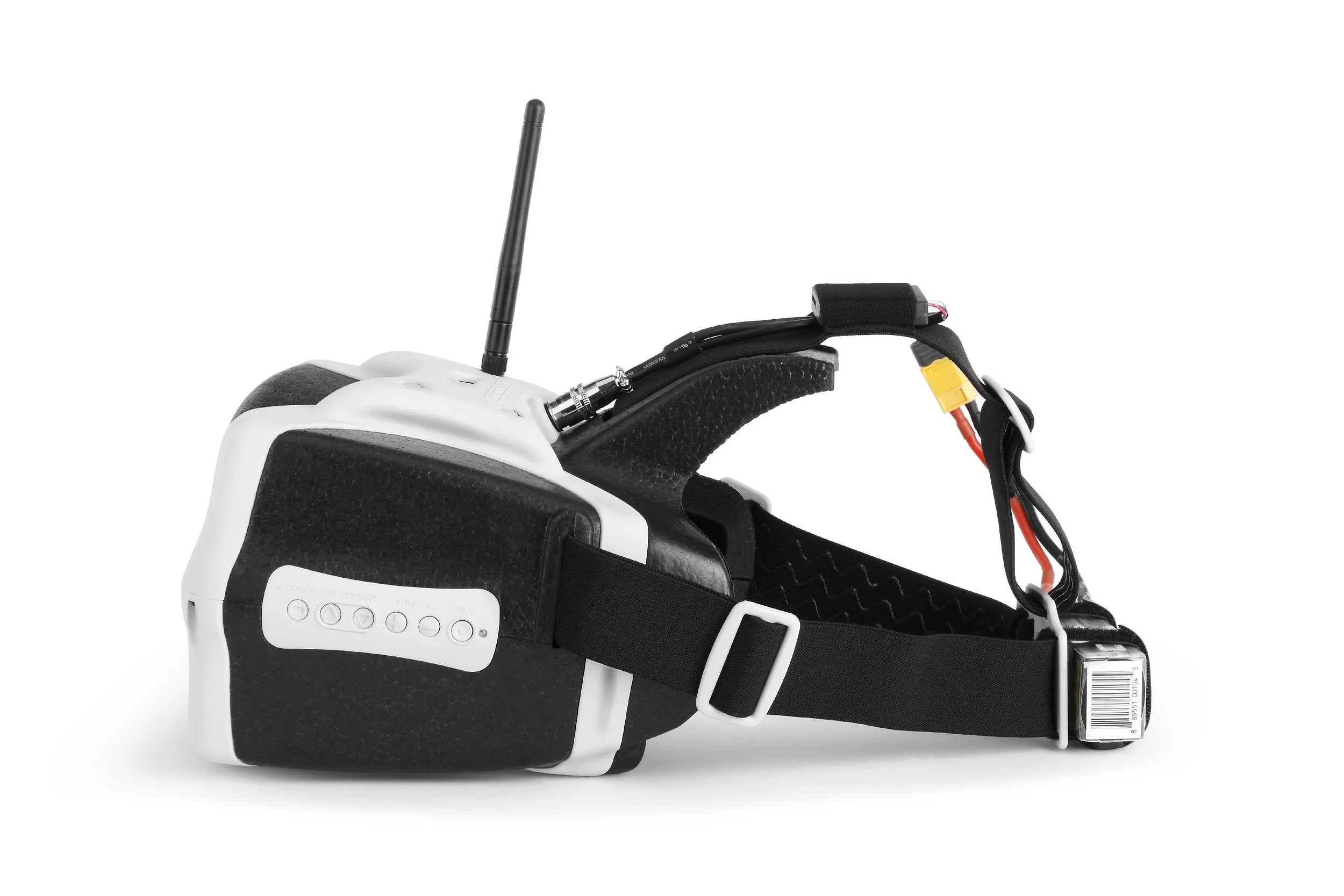

     The new HeadPlay HD FPV goggles are packed full of features that every FPV enthusiast will enjoy. This headset was designed from the ground up with the FPV pilot in mind, with quality, performance and comfort at the forefront. The headset gently rests on the forehead/cheeks spreading the weight out evenly, which compared to many video goggles which rest on the bridge of the nose instead. Three straps securely hold the HeadPlay  in place while at the same time blocking light coming in from the outside. The end result is a cinematic experience that is sure to impress.



7" 1280x800px Immersive Display

The biggest display we could fit, for the most immersion and clarity.
A  7"  gloss screen fills your vision andimmerses you in FPV.  Anti-reflection coating applied to all inner walls gives you the feeling of sitting front row in your own personal cinema.

The view has been compared to an IMAX theatre.

 40 channel  5.8GHz Receiver

The integrated 5.8GHz HyperSensitive a/v receiver designed by RangeVideo, gives you freedom to fly far and low,  even with low power 5.8GHz  transmitters.



HDMI input

Be prepared to take advantage of new technology with the Headplay HD. Featuring a future-proof mini HDMI port , you can use the Headplay with your HD downlink to see in crystal clear HD.

 External A/V input

Connect your 900MHz/1.3GHz/2.4GHz external audio/video receiver to the Headplay HD with the included 2.5 meter long harness.

 Speaker

Turn up the loud speaker and let everyone around you know that you are flying.  Hear the motor roar and the wind howl as you fly.



 Videos



  • Screen size 7"
  • Screen resolution: 1280x800
  • Field of View: 72 degree
  • Fully adjustable picture via intuitive menus









Connectors

  • HDMI type C (HDMI-in)
  • XS9JK (latched high end connector): Power Supply, Video-in, Audio-in, Ground, 5V out
  • SMA antenna connector

General

  • Control via button panel (distinct button design for "blind" operation)
  • Rugged design with extremely durable materials
  • Very high comfort
  • Adjustable straps
  • Different density foam pads allow you to adapt the goggles to your needs.
  • Weight: 400g (excluding battery)
  • Easy to clean optics



Integrated Features

  • 40 channel 5.8GHz A/V receiver
  • 8 segment display
  • Sensitivity: -90dBm
  • Built-in speaker with volume control on buttons





Electrical Properties

  • Current consumption 340mA@12V
  • Supply voltage: 6-15V Recommended 2S LiPo
  • Reverse voltage protection









Frequencies

    • Band 1: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
    • Band 2: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
    • Band 3: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
    • Band 4: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
    • Band 5: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917
